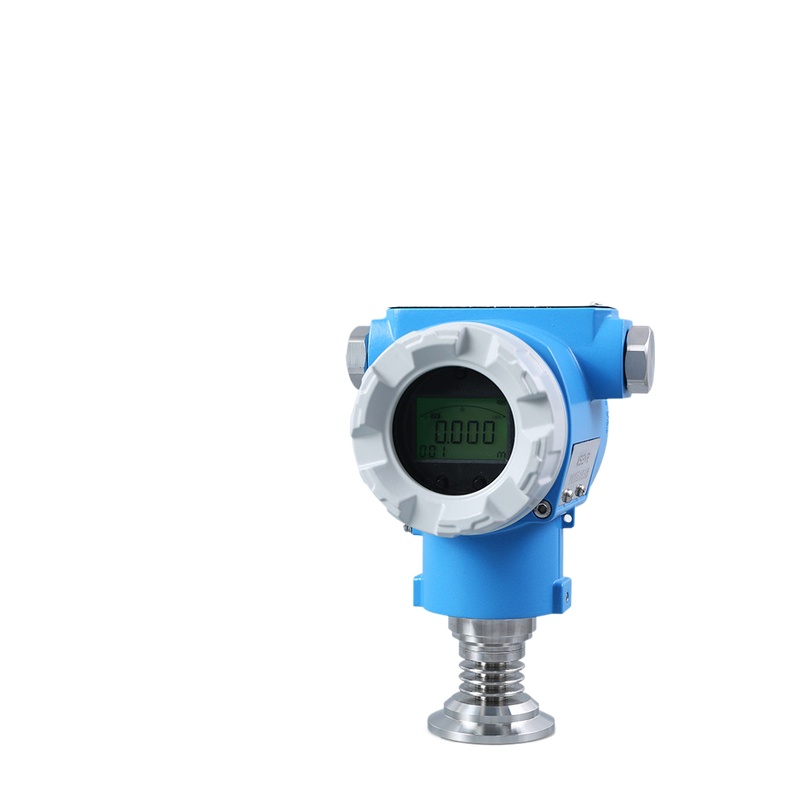

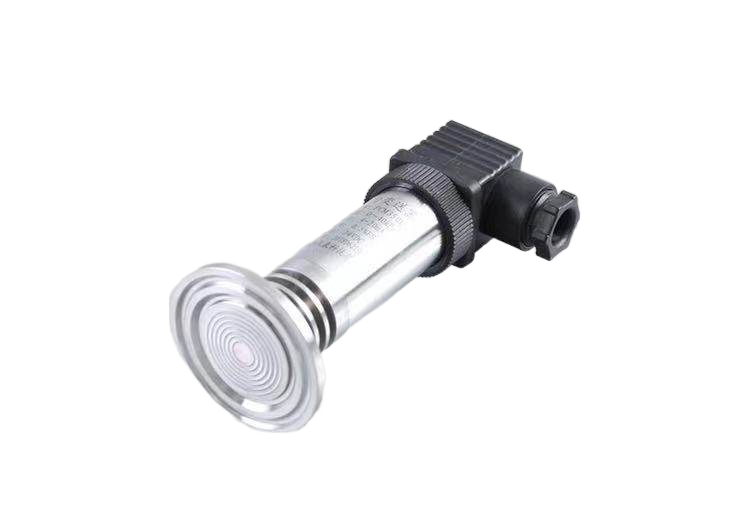

Sanitary (flat film) pressure transmitter
Clean the flat type isolation diaphragm, which complies with the international 3A health standard;
Range: 0-5KPa~35MPa;
Power supply: 15-36VDC
Data download
contact us
Product introduction
Basic Information
YW-130 is a pressure transmitter with zero and span adjustable. It uses high stable and reliable pressure sensor and special circuit board to produce transmitter. This pressure transmitter's performance is good and reliable. MPM489 with flush diaphragm pressure transmitter is mainly applied to hygienic industry.
Feature
• Reliable performance and easy application
• Short protection and reverse polarity protection
• Measure gauge, absolute, and sealed gauge
Specification
Compensation temp.
0℃~50℃
Electrical connection
DIN43650 plug or cable (1.5m)
Overpressure
≤1.5 times FS or 1100bar (min. value is valid)
Application temp.
-30℃~80℃ ; -10℃~60℃ (Exia); -20℃~60℃ (Exd); -10℃~70℃ (Cable)
Storage temp.
-40℃~120℃ ; -20℃~85℃（Cable）
Zero thermal drift
≤±0.05%FS/℃ (≤1bar); ≤±0.03%FS/℃ (>1bar)
Span thermal drift
≤±0.05%FS/℃ (≤1bar); ≤±0.03%FS/℃ (>1bar)
Housing
Stainless steel 304
Sensor housing
Stainless steel 304
Diaphragm
Stainless steel 316L
Sealed-ring
Viton
Plug housing
Plastic
Cable
Φ7.5mm polyethylene special cable
