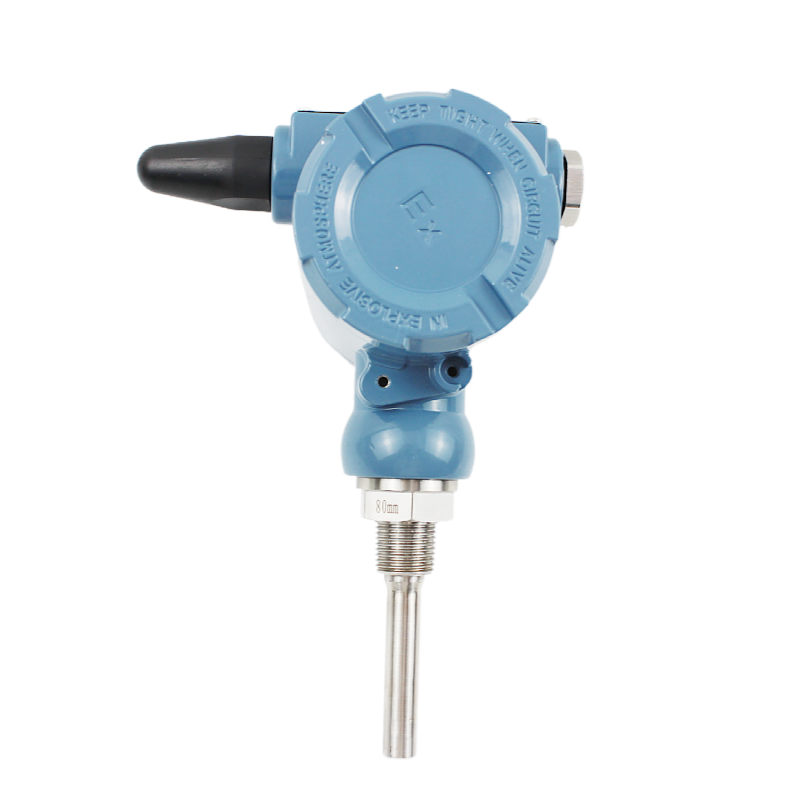

Smart Wireless Digital Temperature Transmitter

The Smart Wireless Digital Temperature Transmitter uses FSTN high-definition segment code LCD, and is suitable for up to ten types of thermocouple and thermal resistor signal transmission. The product uses a 24-bit ∑-△ analog front end to ensure high measurement accuracy; perfect surge protection, lightning protection and anti-reverse connection design to avoid misinstallation and misoperation in engineering applications; enhanced software security design, including low-voltage monitoring reset, multi-task scheduling optimization and other functions. 2.4GHz wireless communication has the characteristics of long transmission distance and fast networking speed. All imported components are used to ensure a long service life and stability.

Technical indicators

◆ Temperature measurement range: -50～300℃ (optional);

◆ Temperature measurement accuracy: ±0.5℃, ±1℃;

◆ Ambient temperature: -30～70℃ (intrinsically safe), -40～125℃ (optional, non-intrinsically safe);

◆ Maximum operating current: <45mA;

◆ Communication time interval: 1S～24H;

◆ Battery working time: 1 year;

◆ Wireless transmission distance: 500m line of sight;

◆ Interface baud rate: 9600 bps;

◆ LCD display: 5-digit display;

◆ Mechanical connection: M16×1.5;/ M27*2 or flange, etc.

◆ Explosion-proof products: in accordance with GB3836.4-2000 standard, explosion-proof mark: ExiaⅡCT4.

The Smart Wireless Digital Temperature Transmitter is a high-precision, intelligent measurement and control instrument that integrates temperature measurement, data display, and wireless communication. It can be connected to the PT100 temperature sensor, and temperature compensation and multi-point calibration are performed for temperature drift, sensitivity, and nonlinearity to ensure the accuracy and stability of the measured data. The instrument is equipped with a segmented LCD screen and operation buttons to facilitate on-site personnel to master monitoring data; at the same time, LoRa, WiFi, NB, and 4G wireless communication networks are used to upload the collected data to the receiving host. The instrument is powered by a high-energy lithium-ion battery, and with a low-power sleep design, the battery life can reach more than 6 years.

Features

(1) PT100 temperature sensor, high precision and good stability;

(2) LCD segment code and operation buttons can display and configure various parameters and status of the instrument;

(3) Adopt LoRa, WiFi, NB, 4G wireless communication technology, the communication distance can reach 5 kilometers (open, low speed, high power);

(4) The wireless transmission interval can be set, and it has the function of sending the measured value immediately when it changes suddenly;

(5) The instrument is powered by a large-capacity high-energy lithium-ion battery, and the battery life can reach more than 6 years;

(6) The meter head: sturdy and durable, strong sealing, moisture-proof and shock-proof, can adapt to the harsh outdoor working conditions.
