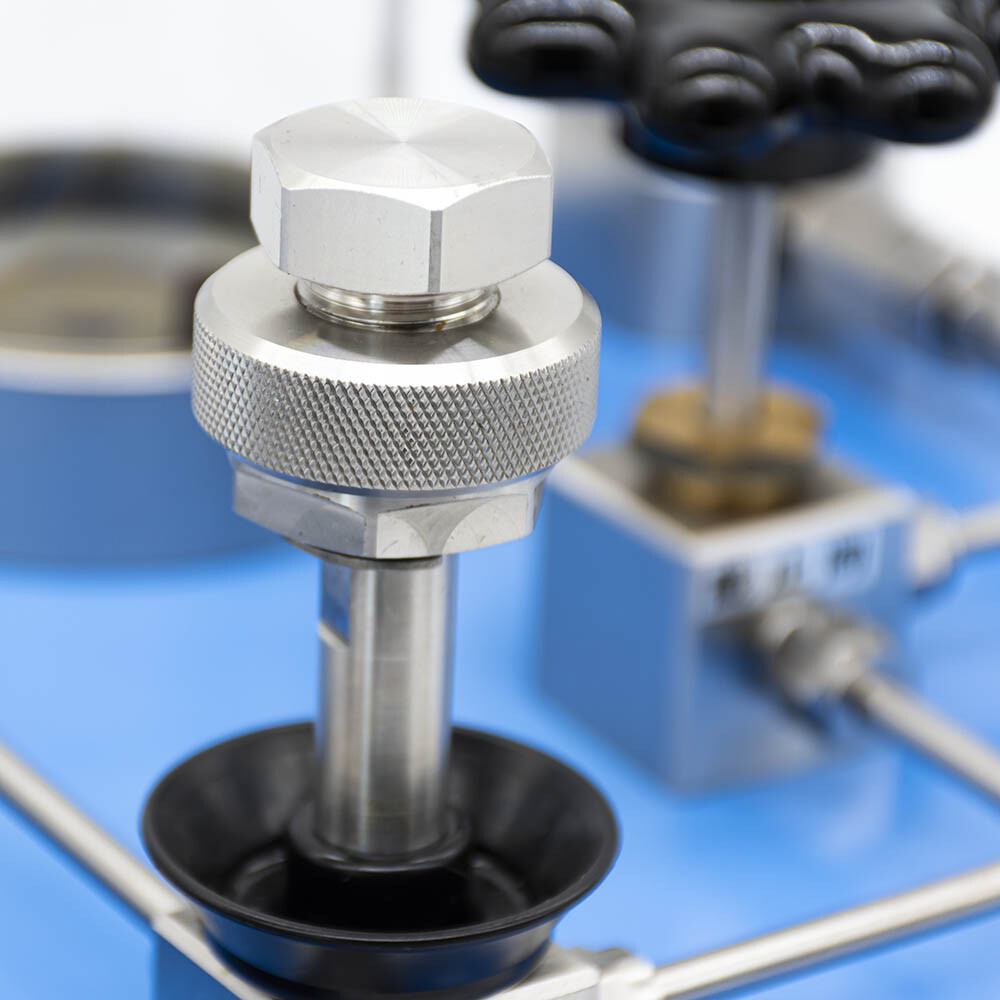

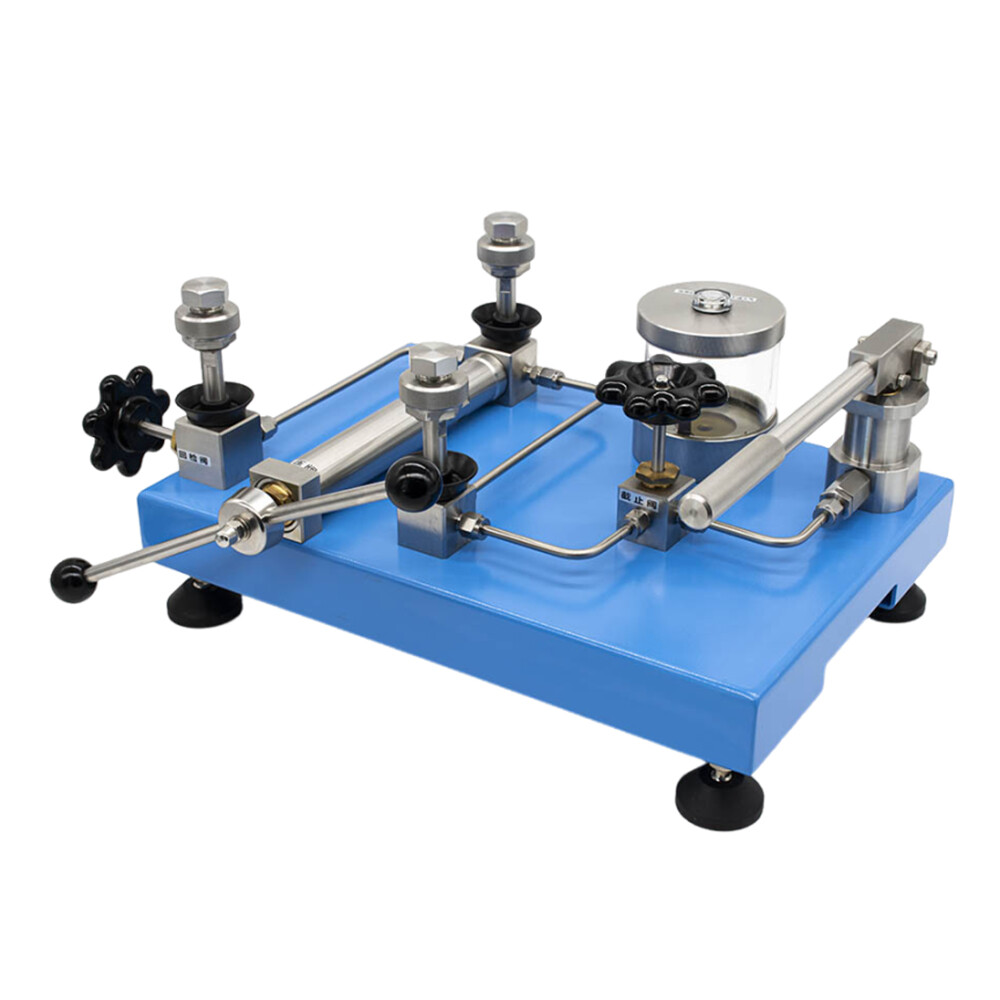

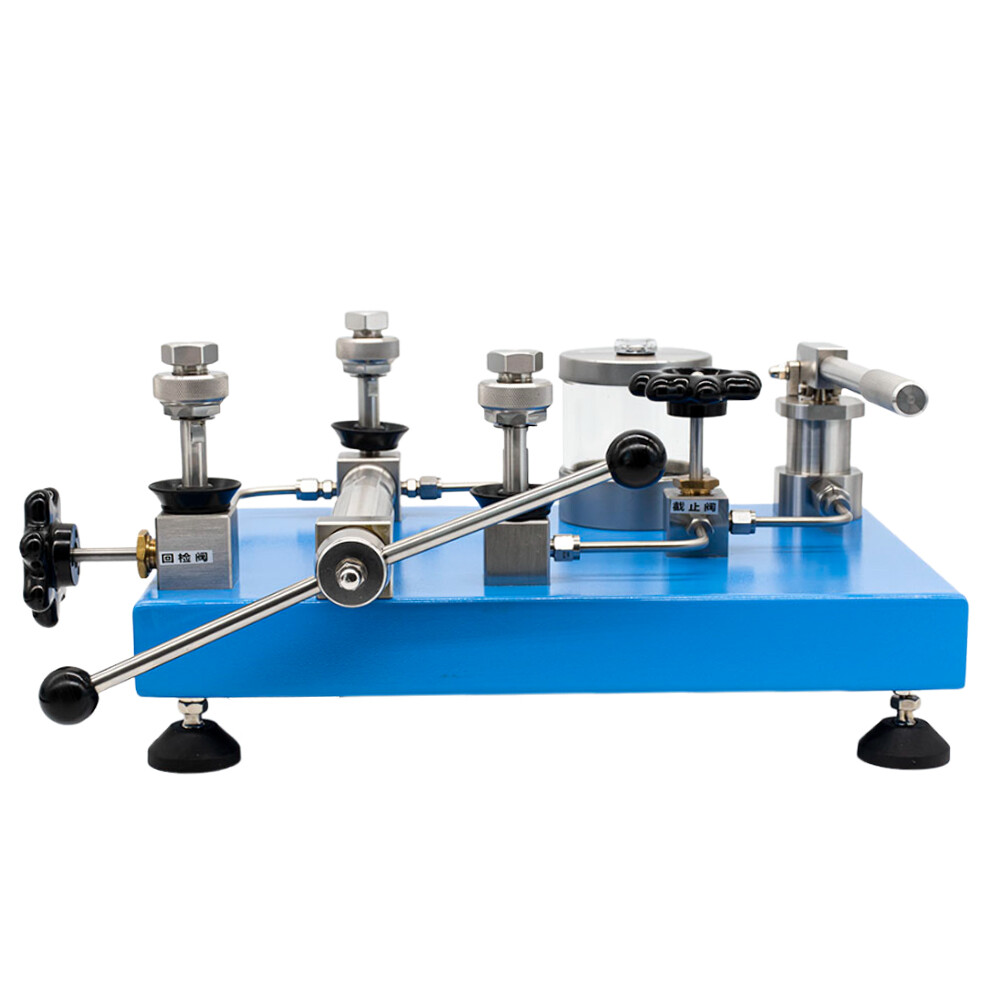

This product uses high-quality stainless steel, foreign advanced sealing technology, through a variety of processing processes and refined.Fully open structure for better maintenance; spiral lifting pressure, stable pressure, stable pressure and return verification is easy to operate; suitable for: food hygiene, aerospace, military, metallurgy, metering, other pressure transmitters, pressure sensors, precision (ordinary) pressure gauge, pressure up to 160MPa.

Technical Parameters:

1. Scale range: 0~60,100,160MPa

2. Medium: transformer oil or distilled water

3. Minimum controllable adjustment degree: 0 . 1 KPa

4. Interface: M20*1.5 3 units

5. Overall dimension: 450X300X 240 (mm)

6. Weight: 13.5kg

7. Fuel tank volume: 0.3L
