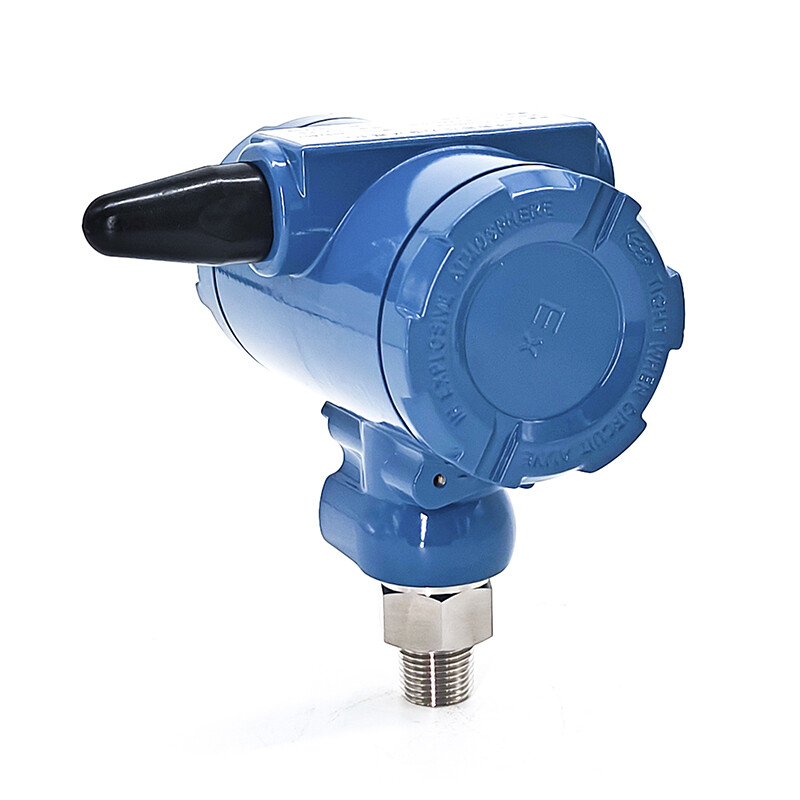

Lora 4G NB-IOT Wireless Pressure Transmitter

Description

Intelligent Wireless Pressure Transmitters are industrial pressureinstruments that integrates the battery-powered, ultra-lowpower consumpton,wireless communication, and pressure /level/Temperature/ Differential Pressure monitoring, Based onthe extensive coverage of the NB-loT/4G publicnetwork, theseproducts enable online monitoring of sites over a wide area,Combined with the application of MicroSensor web dataplatform,remote configuration of sampling interval,transmission interval, alarm threshold can be achieved.

The instrument design meets the protection rating of lP65,canbe used outdoors,supports simple and fast installation,Featuring automatic data uploading after starting up, and dataview on sites via PC or cellphone, it is quite suitable for themonitoring in the environment is not available with power supply.

Specification

Range: Pressure Transmitter: 0~20kPa...70MPa

LevelTransmitter: 0-10mH20

Temperature Transmitter: -50~250℃

DifferentialPressureTransmitter: 0~3.5MPa

SlMCard: built-in Nano-SlM card

Power Supply: 3.6V@38 Ah lithium battery

Power Consumption:

Average working current <30mA @ 3.6V DC

Standbysleep current<10uA @ 3.6V DC

Network Mode: NB-loT/4G/LORaWAN

Wake-up Mode: button, timing, alarm wake up

Housing Material: AluminumAlloy+Stainless Steel

Protection Level: lP65

Installation method: threaded mounting /bracket mounting

Configuration Mode: local bluetooth /remote configuration

Three-partyApplication: MQTT/support third-party platformdocking

Features

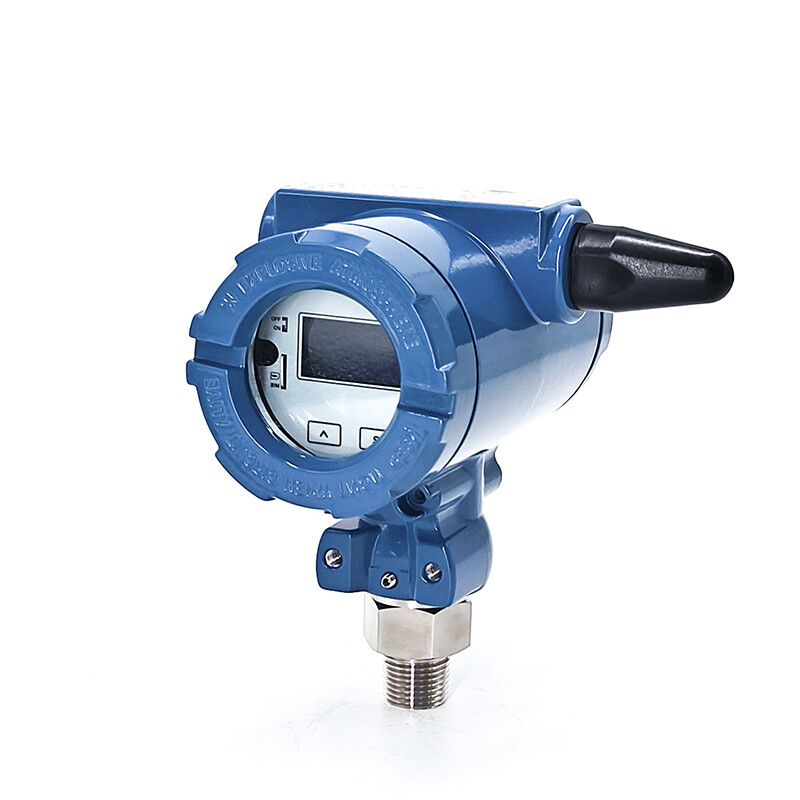

Intelligent Wireless Pressure Transmitter based on Lora/LoRaWAN protocol, which enable LoRaWAN transmission of measurement data. As a node, It can access to public or private LoRaWAN networks gateway. Because the features of long distance, low power and low cost connectivity, the Wireless transmitter is suitable for long-distance and long-term measurement of pressure. It also has a high-definition LCD display, users can easily read the measured values on the site.

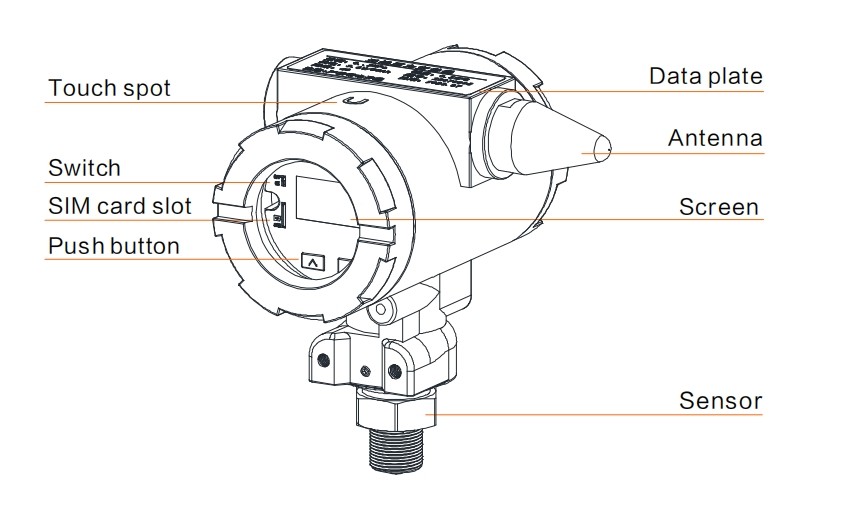

Panel Instruction

Operation Instruction

Power Switch: Toggle to "ON", the screen displays "Hello" and thedevice power on, Toggle to"OFF", the screen displays "Goodbye'and the device power off.

Wake-UpScreen: Tap any button (Magnetic stick trigger 1s), tolight up the screen .

Left Button: The screen lights up, then short press to switch screeninterface.

Right Button: The screen lights up, then press and hold for 3s"Send" appears in the screen, enter the data reporting process.

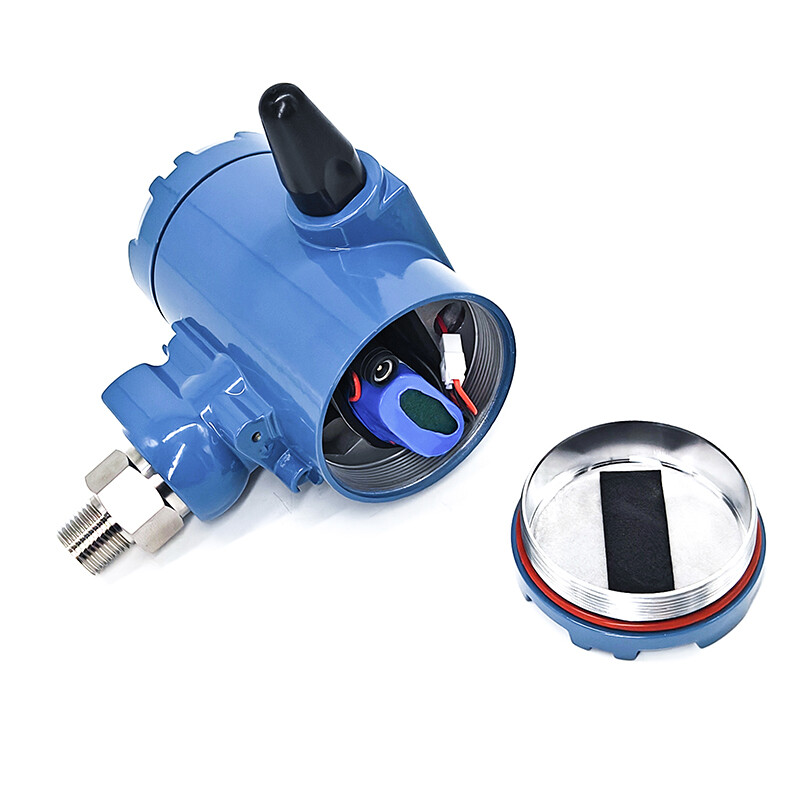

Battery Use Instruction

Battery charging, short circuit, heat more than 100℃disassembly, putting the battery into water or directly solderingon the battery is forbidden, otherwise it may cause explosion,burning and leakage of acid inside the battery. Please send theused batteries to the waste recyclingstation and no littering.

Installation Instructions

The Intelligent Wireless Pressure Transmitter is installed with standard thread. It can be directly installed on the original mechanical pressure gauge, or installed through mechanical tees, half joints and other components. A maintenance valve must be installed before the wireless pressure transmitter is installed on the pipeline.
