Product Description

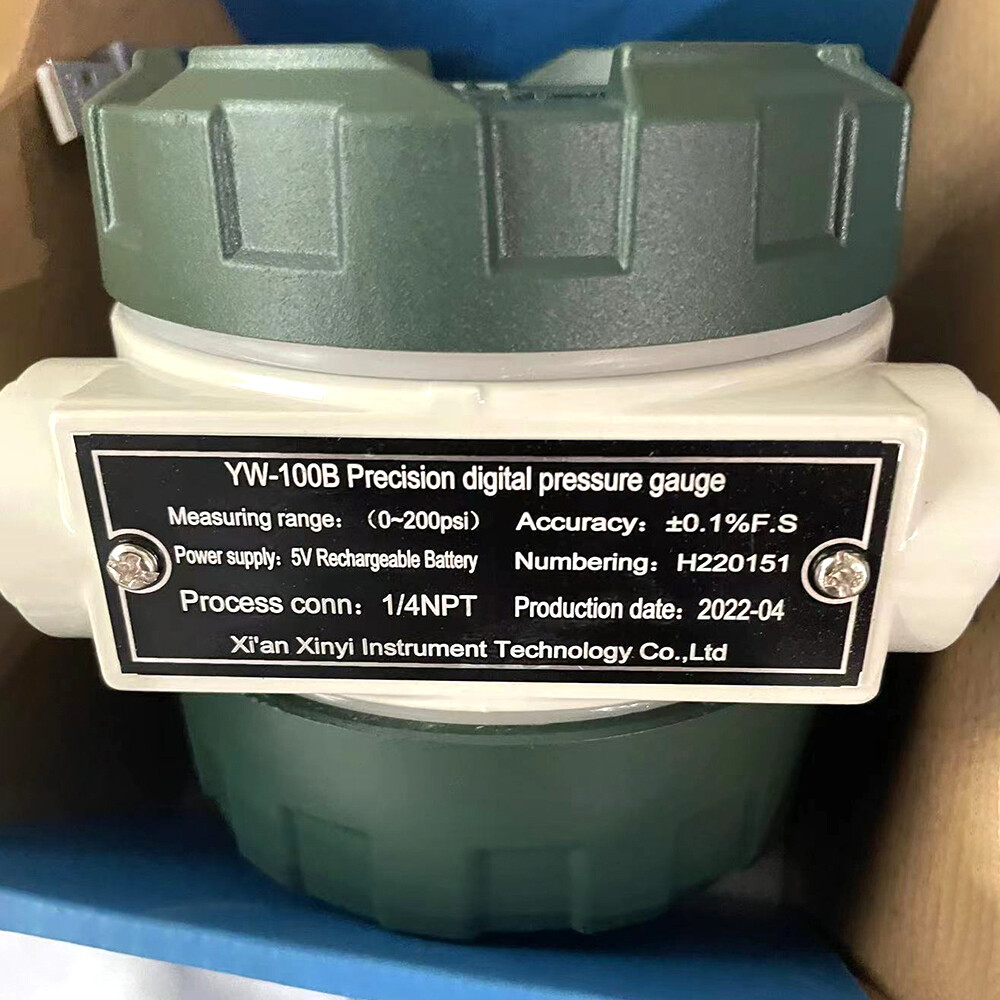

The new generation YW-100GB precision digital pressure gauge adopts a dual explosion-proof design of intrinsic safety and explosion-proof, with a low power consumption design. It is powered by a large capacity 19AH battery and can be used for 3-5 years; The backlight and on/off buttons adopt a magnetic pen design, which allows for on/off and on backlight operations without opening the front cover, making it convenient for users to use.
Product features
●Powered by a 19Ah lithium battery (ER34615H), with a low-power design, the battery can be used for 3-5 years.
●The battery is designed to be replaceable, making it convenient for customers to replace the battery themselves.
●Wide temperature compensation, suitable for various harsh environments.
●The magnetic pen operation can open the backlight and turn on/off the machine, without the need to remove the front cover.
●11 pressure units can be converted, and the units that need to be converted can be set, and the units that are not commonly used can be turned off.
●Double explosion-proof design with explosion-proof and intrinsic safety.
Accuracy level
0.5% FS, 0.4% FS, 0.2% FS, 0.1% FS, 0.05% FS
Pressure range
Gauge pressure: -100kPa~0~600kPa~260MPa
Differential pressure: 0-100kPa~3.5MPa
Absolute pressure: 0-100kPa~60MPa
Usage environment
Environmental temperature: (-20~50) ℃;
Relative humidity: < 95%;
Atmospheric pressure: (86-106) kPa;
Storage temperature: (-30~80) ℃.
Display

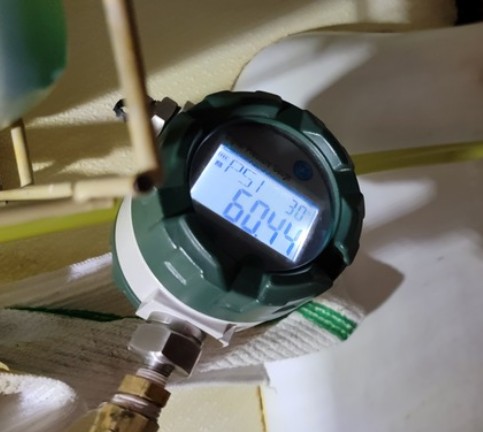

SFTN LCD, white backlight, 5-digit display.
Power supply method
3.6V non rechargeable lithium battery (ER34615H);
Installation method
Radial installation.
Other indicators
Overall dimensions: III00mmx49mm, total length: 168mm
Weight: 1Kg
Pressure interface: standard M20 * 1.5 external threaded joint (customizable according to user needs);
Additional features:
●Temperature measurement: resolution of 0.1 ℃;
●Pressure percentage indication: Use a progress bar to display the percentage of pressure measurement values;
●Can carry (4-20) mA output;
●Can be equipped with RS485 communication;
●Can be equipped with single or dual electrical contacts;
●Can carry data storage, store 1 million pieces of data, and export data using USB flash drives or computer software; Exporting data only takes 7 minutes;
